- MTL

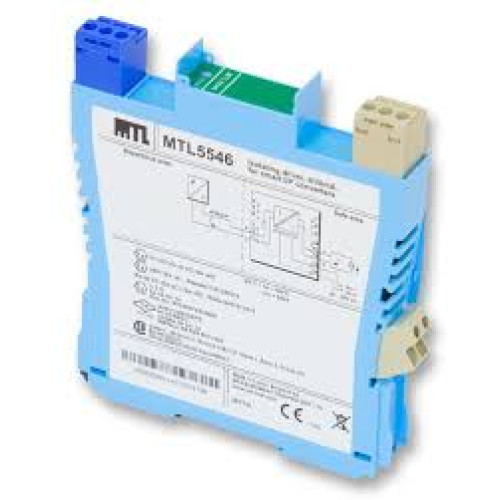

- MTL5546
- accepts a 4/20mA floating signal
- from a safe-area controller to drive a current/pressure converter
- (or any other load up to 800Ω) in
- Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A, hazardous location
- Number of channels One
- Location of I/P converter Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A, hazardous location
- Working range 4 to 20mA
- Digital signal bandwidth 500Hz to 10kHz
- Maximum load resistance 800Ω (16V at 20mA)
- Minimum load resistance 90Ω (short-circuit detection at < 50Ω)
- Output resistance > 1MΩ Under/over range capability
- Under range = 1mA Over range = 24mA (load ≤ 520Ω) Input and output circuit ripple < 40µA
- peak-to-peak Transfer accuracy at 20°C Better than 20µA Temperature drift < 1.0µA/°C
